Automatic Valve Plastic Flange Ball Valve

Description

AUTOMA – Automatic Valve Plastic Flange Ball Valve

The AUTOMA Automatic Valve Plastic Flange Ball Valve is an automated flow-control valve constructed with a corrosion-resistant plastic body and equipped with an electric or pneumatic actuator. It uses a precision ball mechanism to ensure smooth, full-bore flow with minimal pressure loss.

Core Characteristics:

High-durability plastic body
Precision-machined ball for excellent sealing
Automation-ready (electric or pneumatic actuators)
Flanged end connection for secure installation
Excellent chemical and corrosion resistance

This combination makes AUTOMA one of the most reliable automated plastic ball valves available today.

Model Name

Application

Fluids: Water, Steam, Gas, Oil, Chemical Process
Construction: Concentric, Anti Static Device
End Connection: Flange
Design: API 609/598, ANSI B V 16, 34/16.47/16.5
Seat Leakage: Class V, VI

Specification

Valve Size	15A(1/2″) ~ 150A(6″)
Actuator Model	AD50 ~ AD125
Actuator Type	Pneumatic Double Acting(with Dry Air)
Operating Pressure	4 ~ 7kg/㎠
Rotating Angle	90˚ ±5˚
Fluid Temperature	-10℃ ~ 140℃
Rating	ANSI 150#
Material	PVC, PP, PPG, C-PVC, PVDF
Accessory	Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner

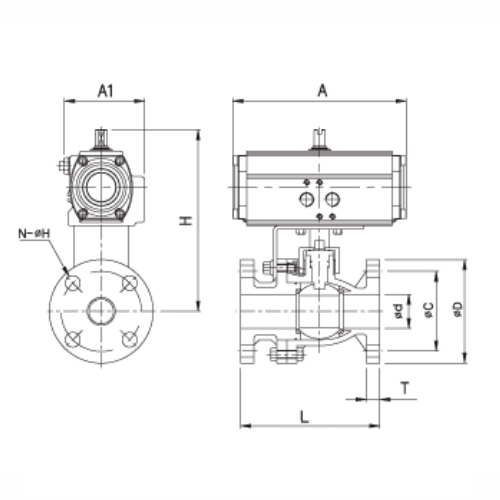

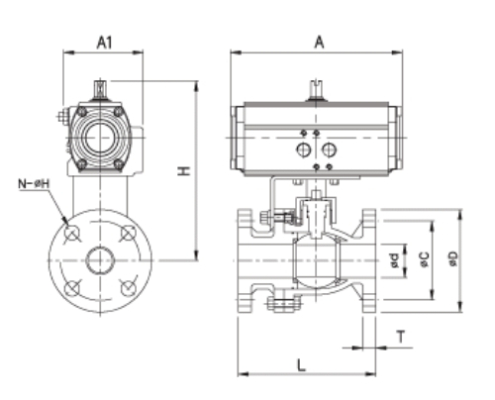

Dimension

Model	Size		A	A1	H (Approx)	L
Model	mm	inch	A	A1	H (Approx)	L
AD50-15F	15A	1/2″	162	75	168	145
AD50-20F	20A	3/4″	162	75	177	150
AD50-25F	25A	1″	162	75	190	170
AD50-30F	30A	1-1/4″	162	75	200	175
AD65-40F	40A	1-1/2″	202	89	212	190
AD65-50F	50A	2″	202	89	227	210
AD65-65F	65A	2-1/2″	202	89	247	260
AD80-80F	80A	3″	262	101	276	265
AD80-100F	100A	4″	262	101	301	300
AD100-125F	125A	5″	311	129	358	360
AD125-150F	150A	6″	390	151	414	360
