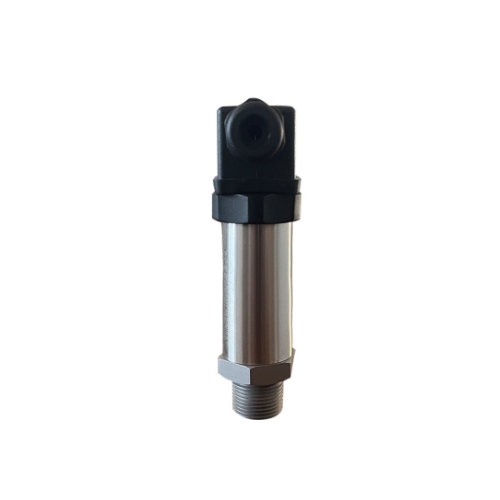

HCDP-13 Pressure Transmitter by HCCK

High Accuracy Industrial Sensor

INTRODUCTION

HCDP-13 Pressure Transmitter by HCCK | High Accuracy Industrial Sensor

Application: Pressure, liquid level measurement
Sensor type: micro melt sensor
Measurement range: 0-60MPa
Measurement accuracy: 0.25%, 0.5%
Long-term stability: Leading 0.2% FS per year
Medium temperature: (-40~105)℃
Signal output: two-wire (4~20)mA/RS485 MODBUS-RTU/0-5VDC, 0-10VDC

The HCDP-13 series transmitter uses a micro-melt pressure sensor as the signal measurement element. Both the Hirschmann connector type and the integrated cable type adopt a single-chip solution.

It uses a highly integrated dedicated sensor signal conditioning chip, digital circuit design, 1Wire digital communication calibration, no potentiometer, and features high precision and high stability.

Hirschmann standard quick-installation interface, optional digital tube or LCD on-site display, realizes the display of various engineering quantities.

The integrated cable type has a high level of protection and is suitable for use in complex sites such as outdoor and diving environments.

Applying advanced temperature compensation and nonlinear correction technology, the pressure chamber of the micro-melting sensor is made of a single-piece integrated structure of 17-4PH stainless steel.

The product is characterized by no O-rings, no welds, no silicone oil or other organic matter, and resistance to strong impact and durability.

It is especially suitable for hydraulic and pneumatic use under harsh conditions.

Pressure transmitter adopts imported pressure sensor as a signal measuring element, digital modular circuit design, digital signal processing technology, which make it has good anti-interference ability and signal stability.

Pressure transmitter can be widely used in the field of petroleum, chemical, steel, power, light industry, environmental protection, food, paper making, medicine and all kinds of harsh environment.

WORKING PRINCIPLE

Pressure transmitter is a device where the weak signals from pressure sensor is con- verted into standard signal output by a special control circuit.

Optional signal output have (4-20)mA HART, RS485 MODBUS, voltage output and etc.

FEATURE

Pressure transmitter adopts imported pressure sensor signal conditioning dedicated chips, high integration, high precision, and high stability.

No adjustable components, and it will not be affected by vibration. The damage rate is low, and no need for maintenance.

Standard (4-20)mA HART or RS485 communication, some models can be easily adjusted on site through buttons.

HCDP-13 Pressure Transmitter by HCCK

High Accuracy Industrial Sensor

HCCK – Hebei Huachuang M&C Technology Co., Ltd.

HCDP-13 Pressure Transmitter – Reliable, Precise & Industrial-Grade

The HCDP-13 Pressure Transmitter by HCCK, manufactured by Hebei Huachuang M&C Technology Co., Ltd., is a high-performance industrial pressure sensor designed for accurate and stable pressure measurement across a wide range of applications.

Engineered with advanced sensing technology and robust stainless-steel construction, the HCDP-13 delivers long-term reliability, precision output, and exceptional durability in demanding industrial environments.

If you are searching for a high-accuracy pressure transmitter with competitive factory pricing, the HCDP-13 is your ideal solution.

Why Choose the HCDP-13 Pressure Transmitter?

1. High Precision & Stable Output

The HCDP-13 industrial pressure transmitter ensures:

High measurement accuracy
Excellent repeatability
Low temperature drift
Strong anti-interference capability
Stable 4–20mA / voltage output

This makes it perfect for automation systems, PLC integration, and real-time monitoring applications.

2. Wide Application Range

The HCDP-13 Pressure Transmitter is widely used in:

Its versatility makes it one of the most reliable industrial pressure sensors in its category.

3. Durable Stainless Steel Construction

Manufactured using high-grade stainless steel, the HCDP-13 offers:

Strong corrosion resistance
High mechanical strength
Protection against vibration and shock
Long service life in harsh environments

This ensures consistent performance even under extreme operating conditions.

4. Flexible Configuration Options

The HCDP-13 can be customized with:

Multiple pressure ranges
Gauge, absolute, or sealed pressure types
Various electrical outputs (4-20mA, 0-10V, RS485 optional)
Different process connection threads
Wide power supply compatibility

This flexibility allows seamless integration into both new and existing systems.

Technical Highlights of HCDP-13 Pressure Transmitter

Measuring Range: Customizable pressure ranges
Accuracy: High precision industrial standard
Output Signal: 4–20mA / Voltage / Optional digital output
Housing Material: Stainless Steel
Protection Level: High IP rating
Media Compatibility: Water, oil, gas, non-corrosive fluids

The HCDP-13 ensures accurate pressure control for critical industrial processes.

Competitive Advantages of HCCK HCDP-13

When compared with other pressure transmitters on the market, the HCDP-13 stands out because of:

Factory-direct pricing
Strict quality inspection procedures
OEM & bulk production capability
Fast delivery worldwide
Strong R&D support

By purchasing directly from Hebei Huachuang M&C Technology Co., Ltd., customers benefit from reliable manufacturing standards and cost efficiency.

Order HCDP-13 Pressure Transmitter Today

Upgrade your industrial monitoring system with the HCDP-13 Pressure Transmitter by HCCK — engineered for precision, durability, and long-term performance.
