INTRODUCTION

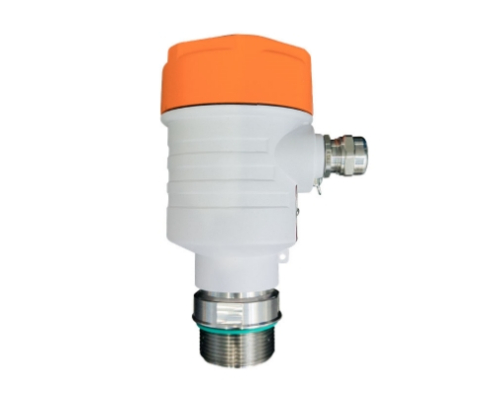

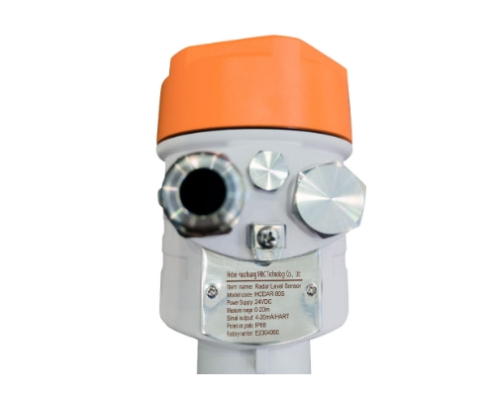

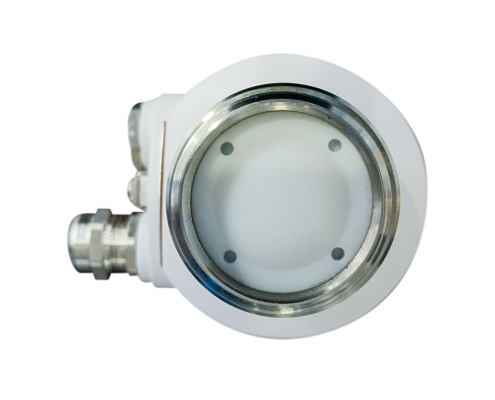

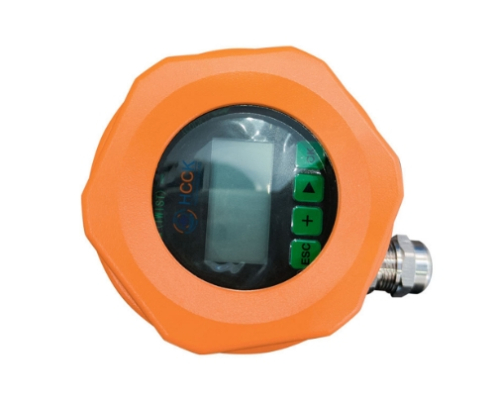

HCDAR-80S Radar Water Level Sensor | Liquid Radar Level Transmitter | HCCK Radar Level Meter Manufacturer
- Application: Liquid Measurement
- Measuring Range: 0～20m
- Beam Angle: 8°
- Response Time: <0.6s (depending on parameter settings)
- Medium Temperature: (-40～120)℃
- Process Pressure: (-0.1～2)MPa
- Accuracy: <2mm
- Signal Output: (4～20)mA HART
- Working Frequency: (76 ~ 81)GHz
- Explosion-Proof Grade: Ex ia IIC T6 Ga
76 ~ 81GHz FMCW radar level sensor 4～20 mA radar water level transmitter.
HCDAR-8x series radar level sensor is one kind of level measuring instrument which uses FMCW special millimeter wave technology, the working frequency is 76-81GHz.
The signal output has options: 2-wire 4-20mA, 4-wire 4-20mA or RS485.
The max measuring range can reach 120m, and the blind zone of 8cm.
The antenna beam angle is about 3°, the outstanding performance makes it workable for the accurate measurement of liquids, solids and powder materials.
WORKING PRINCIPLE
HCDAR-8x series launch a microwave signal frequency changing with the time linearly, the reflected signal and the launched signal are mixed through the “mixer”.
The difference of frequency is proportional to the distance from radar to the reflection surface and get the distance information required through the FFT transform.
FEATURE
HCDAR-6x series has small beam angles, and strong anti-interference ability, which improves measurement accuracy and reliability.
The antenna size is smaller, easy to install. It has small measuring blind zone and shorter wavelength.
HCDAR-6X has a good measurement effect for small tanks and small particles. Non-contact measurement, no wear, no pollution.
Output option: 2-wire (4-20 )mA HART and 4-wire RS485 Modbus.
HCDAR-80S Radar Water Level Sensor | Liquid Radar Level Transmitter | HCCK Radar Level Meter Manufacturer
- HCDAR-80 Cement Radar Level Sensor
- HCDAR-80S Radar Water Level Sensor
- HCDAR-81 Radar Level Sensor | High Frequency Solid Level
- HCDAR-81S 80GHz Radar Solid Level Sensor
- HCDAR-82 High Temperature Radar Level Sensor
- HCDAR-8H Radar Level Sensor Manufacturer
- HCDAR-85 Radar Level Sensor | 80GHz High Precision Liquid Level Measurement
HCDAR-80S Radar Water Level Sensor – High Precision Liquid Radar Level Transmitter by HCCK
Introduction to HCDAR-80S Radar Water Level Sensor
The HCDAR-80S Radar Water Level Sensor is a high-performance radar level transmitter designed for precise liquid level measurement in water monitoring and industrial liquid applications. Manufactured by HCCK – Hebei Huachuang M&C Technology Co., Ltd., this advanced radar level meter delivers stable, accurate, and reliable non-contact level measurement even in challenging outdoor environments.
Using advanced radar measurement technology, the HCDAR-80S radar water level sensor provides highly accurate liquid level detection in rivers, reservoirs, water tanks, dams, wastewater plants, irrigation systems, and industrial liquid storage tanks.
Unlike traditional float or ultrasonic sensors, the HCDAR-80S radar level transmitter performs reliably in rain, fog, wind, temperature changes, and harsh outdoor environments. Its high-frequency radar signal ensures stable measurement unaffected by environmental conditions.
The HCDAR-80S liquid radar level sensor is widely used in hydrological monitoring systems, flood warning systems, smart water management systems, and industrial liquid level control applications.
Key Features of HCDAR-80S Radar Water Level Sensor
High Precision Radar Level Measurement
The HCDAR-80S radar level transmitter uses advanced radar technology to provide high-precision liquid level measurement with stable signal output.
Non-Contact Water Level Monitoring
The HCDAR-80S water level radar sensor measures liquid levels without direct contact with the medium, ensuring long-term durability and minimal maintenance.
Reliable Outdoor Operation
Designed for outdoor environments, the HCDAR-80S radar water level meter performs reliably in rain, fog, humidity, temperature variations, and wind conditions.
Excellent Performance in Harsh Environments
The HCDAR-80S liquid radar level sensor maintains accurate measurement even in waves, turbulence, foam, and fluctuating water surfaces.
High Stability and Long Service Life
Thanks to its industrial-grade radar measurement technology, the HCDAR-80S radar level transmitter offers long operational life with high stability.
Easy Installation and Integration
The HCDAR-80S radar level sensor supports standard industrial output signals for easy integration into PLC systems, SCADA monitoring systems, and remote telemetry systems.
Technical Specifications of HCDAR-80S Radar Level Sensor
| Parameter | Specification |
|---|---|
| Product Model | HCDAR-80S |
| Product Type | Radar Water Level Sensor |
| Measurement Object | Liquid / Water |
| Measurement Principle | High Frequency Radar |
| Measurement Range | Up to 30m (depending on application) |
| Accuracy | ±3mm |
| Output Signal | 4-20mA / RS485 / Modbus |
| Power Supply | 24V DC |
| Operating Temperature | -40°C to 80°C |
| Protection Level | IP67 / IP68 |
| Installation Type | Tank / River / Reservoir Mounting |
| Brand | HCCK |
| Manufacturer | Hebei Huachuang M&C Technology Co., Ltd. |
Applications of HCDAR-80S Radar Water Level Transmitter
The HCDAR-80S radar water level sensor is widely used in water monitoring and industrial liquid level measurement systems.
Hydrological Monitoring
The HCDAR-80S radar water level meter is commonly used for river water level monitoring, flood control systems, and hydrological stations.
Reservoir and Dam Water Level Monitoring
This radar level sensor for water measurement provides reliable measurement for reservoir water level monitoring and dam safety management.
Wastewater Treatment Plants
The HCDAR-80S liquid radar level transmitter is ideal for sewage treatment plants and wastewater monitoring systems.
Water Tank and Liquid Storage Monitoring
The radar level transmitter HCDAR-80S can measure liquid levels in water storage tanks, chemical tanks, and industrial liquid containers.
Smart Water Management Systems
The HCDAR-80S radar water level sensor integrates easily into IoT water monitoring platforms and remote telemetry systems.
Why Choose HCCK HCDAR-80S Radar Water Level Sensor?
Professional Radar Sensor Manufacturer
HCCK (Hebei Huachuang M&C Technology Co., Ltd.) is a leading manufacturer specializing in industrial radar level sensors, flow meters, and water monitoring instruments.
Advanced Radar Measurement Technology
The HCDAR-80S radar water level transmitter uses advanced radar technology to ensure high accuracy, strong signal penetration, and stable performance.
Reliable Industrial Quality
Every HCDAR-80S radar level sensor undergoes strict quality testing to guarantee reliable operation in industrial and environmental monitoring applications.
Competitive Factory Price
As a direct manufacturer, HCCK provides the HCDAR-80S radar level transmitter at competitive factory prices for global distributors and project buyers.
Global Application Support
The HCDAR-80S radar water level sensor is widely used in water conservancy projects, environmental monitoring systems, and industrial automation applications worldwide.
HCDAR-80S Radar Water Level Sensor – Smart Solution for Liquid Level Measurement
The HCDAR-80S radar level transmitter is a reliable and high-performance solution for liquid level monitoring in water management systems and industrial liquid storage applications.
With high-frequency radar technology, non-contact measurement, strong environmental adaptability, and precise level detection, the HCDAR-80S radar water level sensor by HCCK provides an advanced solution for accurate water level measurement and industrial liquid monitoring.
If you are looking for a high-precision radar water level sensor manufacturer, the HCDAR-80S radar level transmitter from HCCK is an ideal choice for stable and reliable liquid level monitoring.
