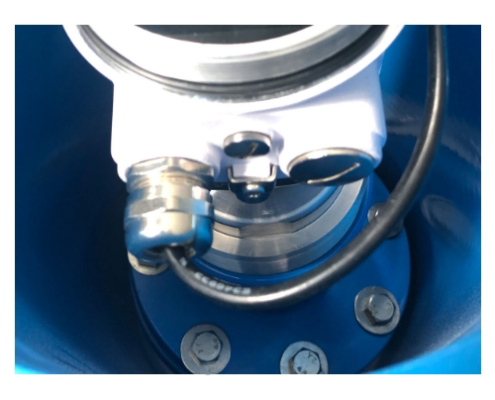

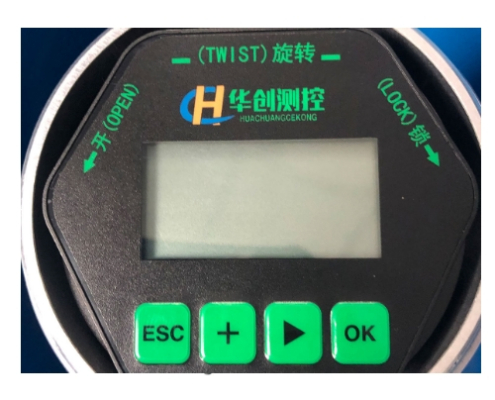

HCDAR-82 High Temperature Radar Level Sensor | HCCK Radar Level Transmitter for Liquid & Solid Measurement
- Application: Measurement of Liquid and Solid
- Measuring Range: 0～60m
- Thread And Antenna Size: Flange
- Beam Angle: 3°
- Medium Temperature: (-40～1200)℃
- Process Pressure: (-0.1～2)MPa (With Quartz Isolation Flange)
- Accuracy: <2mm
- Signal Output: (4～20)mA HART, RS485 MODBUS-RTU
- Working Frequency: (76 ~ 81)GHz
- Protection Grade: IP68
-40～1200℃ 0-60m 76 ~ 81GHz radar level sensor angle 3° IP68 High temperature resistant radar level transmitter.
HCDAR-8x series radar level sensor is one kind of level measuring instrument which uses FMCW special millimeter wave technology, the working frequency is 76-81GHz.
The signal output has options: 2-wire 4-20mA, 4-wire 4-20mA or RS485.
The max measuring range can reach 120m, and the blind zone of 8cm.
The antenna beam angle is about 3°, the outstanding performance makes it workable for the accurate measurement of liquids, solids and powder materials.
WORKING PRINCIPLE
HCDAR-8x series launch a microwave signal frequency changing with the time linearly, the reflected signal and the launched signal are mixed through the “mixer”.
The difference of frequency is proportional to the distance from radar to the reflection surface and get the distance information required through the FFT transform.
FEATURE
HCDAR-6x series has small beam angles, and strong anti-interference ability, which improves measurement accuracy and reliability.
The antenna size is smaller, easy to install. It has small measuring blind zone and shorter wavelength.
HCDAR-6X has a good measurement effect for small tanks and small particles. Non-contact measurement, no wear, no pollution.
Output option: 2-wire (4-20 )mA HART and 4-wire RS485 Modbus.
HCDAR-82 High Temperature Radar Level Sensor | HCCK Radar Level Transmitter for Liquid & Solid Measurement
-
- HCDAR-80 Cement Radar Level Sensor
- HCDAR-80S Radar Water Level Sensor
- HCDAR-81 Radar Level Sensor | High Frequency Solid Level
- HCDAR-81S 80GHz Radar Solid Level Sensor
- HCDAR-82 High Temperature Radar Level Sensor
- HCDAR-8H Radar Level Sensor Manufacturer
- HCDAR-85 Radar Level Sensor | 80GHz High Precision Liquid Level Measurement
HCDAR-82 High Temperature Radar Level Sensor – Precision Radar Level Transmitter for Liquid & Solid Measurement
The HCDAR-82 High Temperature Radar Level Sensor from Hebei Huachuang M&C Technology Co., Ltd. (brand HCCK) is an advanced industrial radar level transmitter designed for high temperature environments, liquid level monitoring, and solid material measurement.
Engineered with cutting-edge radar technology, the HCDAR-82 radar level sensor provides high accuracy, stable performance, and reliable measurement even in harsh industrial conditions such as high pressure tanks, chemical processing plants, oil storage tanks, and bulk material silos.
This radar level measurement device is widely used across industries that demand continuous, non-contact, and maintenance-free level measurement solutions.
What is the HCDAR-82 High Temperature Radar Level Sensor?
The HCDAR-82 radar level transmitter is a non-contact microwave radar sensor designed for precise measurement of liquid levels and solid materials inside tanks, vessels, silos, and industrial containers.
Using high-frequency radar signals, the sensor transmits electromagnetic waves toward the material surface and receives the reflected signals to calculate the level distance with exceptional accuracy.
Unlike traditional level sensors, radar technology provides reliable measurement regardless of temperature, pressure, vapor, dust, or foam.
Key Features of HCDAR-82 Radar Level Sensor
1. High Temperature Resistance
The HCDAR-82 high temperature radar level sensor is engineered for industrial environments where temperatures are extreme.
It performs reliably in chemical plants, boilers, and oil tanks.
2. High Precision Radar Technology
With advanced radar signal processing technology, the device provides accurate and stable level measurement even in difficult process conditions.
3. Non-Contact Measurement
Radar technology allows non-contact level measurement, eliminating mechanical wear and ensuring long-term reliability and minimal maintenance.
4. Suitable for Liquid and Solid Measurement
The sensor can measure:
-
Water
-
Oil
-
Chemical liquids
-
Slurry
-
Powder
-
Grain
-
Cement
-
Bulk materials
5. Strong Anti-Interference Capability
The HCDAR-82 radar level transmitter maintains accuracy even in environments with dust, vapor, foam, condensation, or turbulence.
6. Easy Installation & Configuration
The sensor is designed for quick integration into industrial automation systems and process control equipment.
Technical Advantages of HCDAR-82 Radar Level Transmitter
The HCDAR-82 radar level measurement device provides several technological advantages compared with traditional sensors:
-
High frequency radar signal technology
-
Long measurement range
-
High temperature stability
-
Strong signal penetration
-
Intelligent echo processing
-
Low maintenance operation
These features make the HCDAR-82 radar level sensor ideal for demanding industrial processes.
Industrial Applications
The HCCK HCDAR-82 radar level sensor is widely used in multiple industries that require reliable level monitoring.
Chemical Industry
Used for monitoring corrosive liquids and chemical storage tanks.
Oil & Gas Industry
Provides accurate level measurement for crude oil tanks, fuel storage tanks, and refinery processes.
Power Plants
Ensures safe monitoring of boilers, condensate tanks, and high temperature vessels.
Food & Agriculture
Used for measuring grain silos, powder materials, and food processing tanks.
Cement & Mining
Ideal for bulk material measurement such as cement powder, sand, and mineral storage silos.
Why Choose HCCK Radar Level Sensors?
Hebei Huachuang M&C Technology Co., Ltd. is a professional manufacturer specializing in industrial measurement instruments and automation solutions.
The HCCK radar level sensors are known for:
-
Reliable industrial performance
-
Advanced radar measurement technology
-
Durable construction for harsh environments
-
Competitive factory pricing
-
Global export capability
These advantages make HCCK products a trusted choice for industrial automation and process control systems worldwide.
Benefits of Using HCDAR-82 Radar Level Measurement
Choosing the HCDAR-82 high temperature radar level sensor provides several operational benefits:
-
Improved process safety
-
Accurate tank inventory monitoring
-
Reduced maintenance costs
-
Continuous real-time level measurement
-
Increased efficiency in industrial production
HCDAR-82 Radar Level Sensor for Tank, Silo, and Industrial Level Monitoring
Whether your application requires liquid level measurement in storage tanks or solid material monitoring in large silos, the HCDAR-82 radar level transmitter delivers dependable performance.
The sensor is designed to meet the needs of industries that require precision level monitoring under high temperature and challenging environmental conditions.
Request Quote for HCDAR-82 Radar Level Sensor
If you are looking for a high-performance radar level sensor for liquid and solid measurement, the HCDAR-82 from HCCK is a powerful solution for modern industrial processes.
Contact Hebei Huachuang M&C Technology Co., Ltd. today to request a product quotation, technical specifications, or OEM/ODM cooperation.
