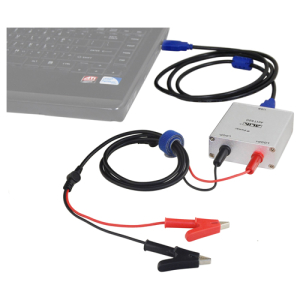

AHT520 Series

Diskripsi Produk

The AHT520 Series HART communicator is a PC communication link to HART networks for commissioning, servicing, calibrating, or acquiring data from any HART instrument or transmitter.
AHT520 is a friendly user interface that enables you to set and check instrument parameters such as tag numbers and ranges, outputs, and view data.

Fitur

  • Compatible with HART products from multiple manufacturers
  • No external power supply required, USB powered from notebook / PC
  • Compact size 2.9″ * 2.5″ * 0.85″ (73 * 64 * 22 mm)
  • Rugged Aluminum Alloy enclosure
  • Polarity insensitive so you may attach either one of the test clips to positive or negative poles
  • Standard USB port
  • USB 1.1 and 2.0 compatible
  • Hart communicator programming software included

Spesifikasi

Power Supply : System Power by USB Port
Supply Current : 40 mA@+5 VDC
Output Level : 0.5 +/- 0.1 Vpp trapezoidal wave
Isolation : 1500 VDC between instrument and
Computer
Leakage Current : Less than 200 μA Typical
EMI / RFI Effect : Follow SAMA PMC 33.1 from 20-1000
MHz and for field strengths up to 30 V/m
Protection Class : IP54
USB Interface : USB 1.1 and USB 2.0
Port to Hart Device : Two Mini-Grabber test clips
Length : 1.0 m
Port to Computer : USB connector
Length : 1.5 m
Operating Temperature : 0~55 °C
Storage Temperature : -40~85 °C
Storage Humidity : 0-98% relative humidity
Enclosure : Aluminum alloy housing with impact
resistant performance
System Requirements
Operating System : Windows 98 / 2000 / XP / Win7
Display : 800 * 600 or better resolution
Hard Disk Drive : 1 GB space or more
Main Memory : 256 MB or more
Function : Parameter manager
: DTM works
Parameter Storage : Saved as TXT files
Dimensions : 73 mm (L) *64 mm (W) *24 mm (H)
: 2.9″ (L) * 2.5″ (W) * 0.85″ (H)
CE Mark : The AHT520 meets the legal requirements
of the EC directives
Weight : 0.15 kg (0.33 lb)
Standard package : AHT520 HART Communicator * 1 set
: Test clip (1.0 m) * 1 pair
: USB connector (1.5 m) * 1 set
: USB memory (DTM & Driver inside) * 1set
