ZETKAMA zGAU Fig. 716

Liquid level gauge

Description

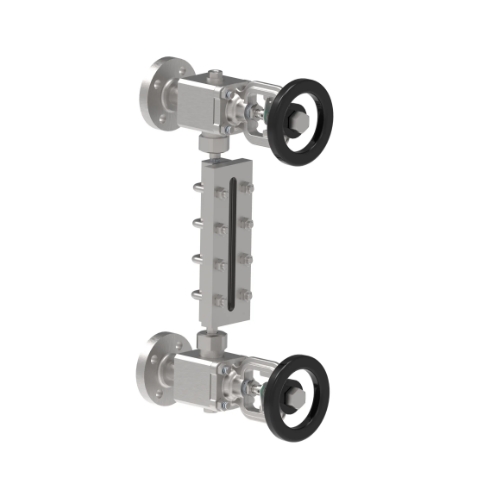

ZETKAMA zGAU Fig. 716 Liquid level gauge

Material: Cast steel, stainless steel, alloy steel
Nominal pressure: 40, 63 bar
Size: 0 – XI
Temperature range: 0…+300°C

Liquid level gauge with reflex or transparent glass.

The zGAU Fig. 716 model is a liquid level gauge designed by ZETKAMA — a manufacturer renowned for industrial valves and instrumentation.
It is essentially a visual level indicator (sight glass / reflex glass) used for measuring and monitoring the fluid level in pressurized or non‑pressurized tanks and vessels.

This gauge is part of the zGAU series, which includes other models like Fig. 706 and Fig. 708.

Application

Industry

Shipbuilding industry

Drinking water

Petrochemical industry

Sewage

Heating

Glycol

Industrial water

Features

compact design
multifunctional
possibility to adapt the connections
modern head design
possibility to adapt the liquid level gauges to other lengths than standard ones
in the version with flanged connections, the connection flanges of the heads are drilled at PN40 as for DN20 and made with type B1 sealing surfaces with projection according to PN EN 1092-1 as a standard
in the version with threaded connections, the ½” (GZ) threaded connection as a standard
in the version with welded connections, the possibility of making the connection according to the customer’s needs
