VINCER VP12

Pneumatic Wafer Butterfly Valve

Description

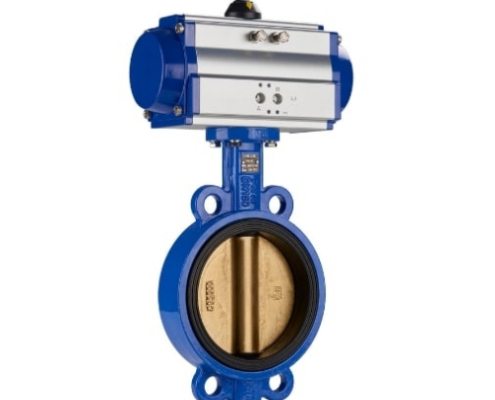

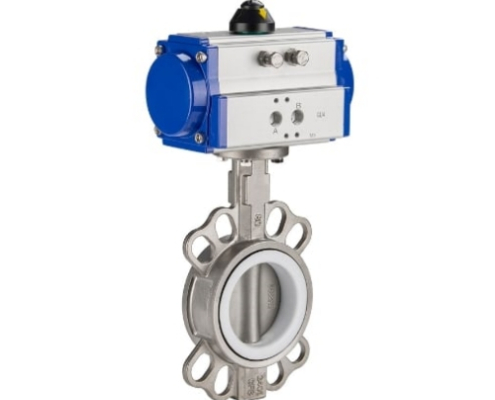

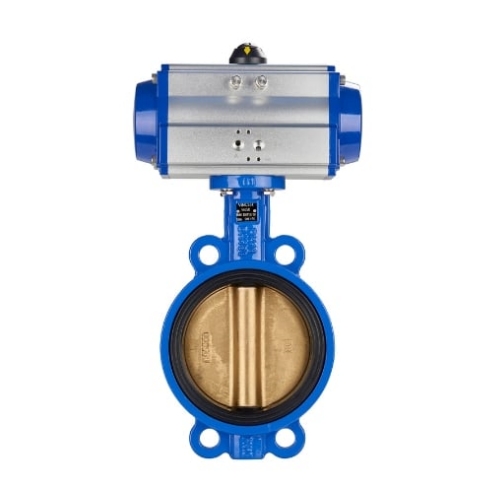

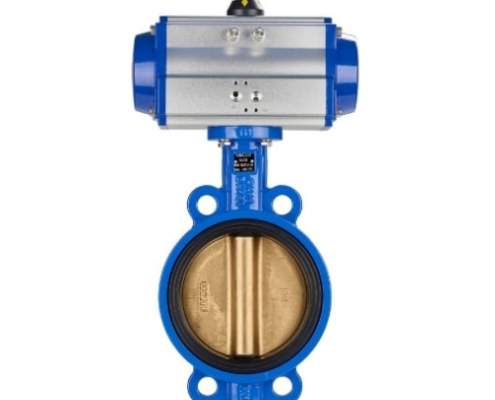

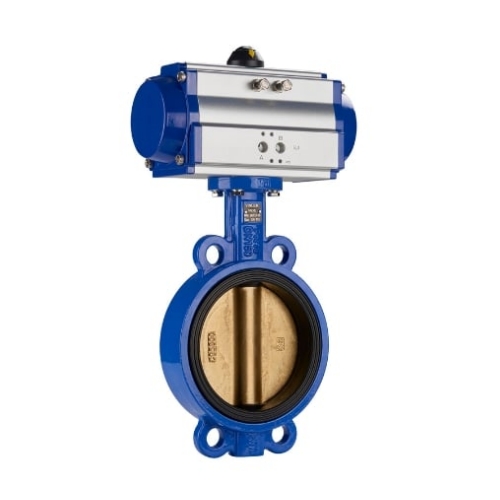

VINCER VP12 Pneumatic Wafer Butterfly Valve

Pneumatic wafer butterfly valve adopts wafer connection method and is suitable for medium and low pressure fluid control. It has the advantages of fast opening and closing, simple structure and easy maintenance.

When it comes to robust flow control in industrial pipelines, the VINCER VP12 Pneumatic Wafer Butterfly Valve stands out as a versatile, reliable solution. Designed for applications where precision, durability, and ease of automation are essential, the VP12 line offers a variety of materials, sealing options, and pressure/temperature ratings to suit many challenging environments. In this guide, you’ll gain in-depth understanding of its features, benefits, specifications, selection tips, and best practices for installation and maintenance.

Characteristics

Pneumatic wafer butterfly valves are fluid control devices that regulate fluid flow by rotating a disc-shaped butterfly. Their advantages include efficient flow control, durability and reliability, suitability for bidirectional flow, and cost-effective options.

Size range: DN50 to DN600
Valve Materials: Stainless steel / Cast iron / Carbon steel
Disc Materials: Stainless steel or Cast iron
Sealing Materials: PTFE or EPDM
Stem Materials: CF8 or CF8M
Temperature Range: -10°C to 180°C
Operating Pressure Range: 10bar

Specifications

Valve

Size Range	DN50 to DN600
Max.Pressure Range	10bar
Temperature Range	Up to 180℃
Valve Material Options	Stainless steel / Cast iron / Carbon steel
Disc Material Options	Stainless steel / Cast iron
Sealing Material Options	EPDM / PTFE
Connection Types	Wafer

Pneumatic Rack & Pinion Actuators

Torque Range	50Nm to 4678Nm
Single Acting Type	Supply air to open and will auto-return once air is interrupt
Double Acting Type	Supply air to open and supply air to close
Pneumatic Accessories Options	Limit switch, Positioner, Pneumatic solenoid valve, F.R.L or Gearbox
