VINCER VE30-EGO

Electric Actuated Globe Valves

Description

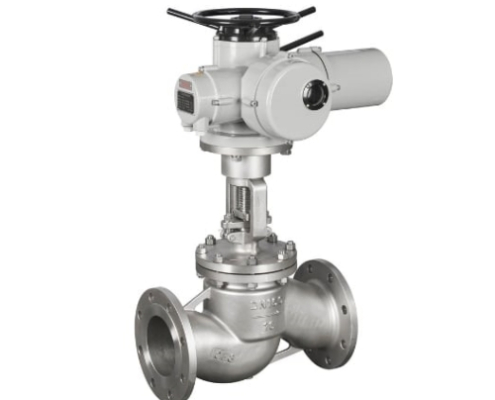

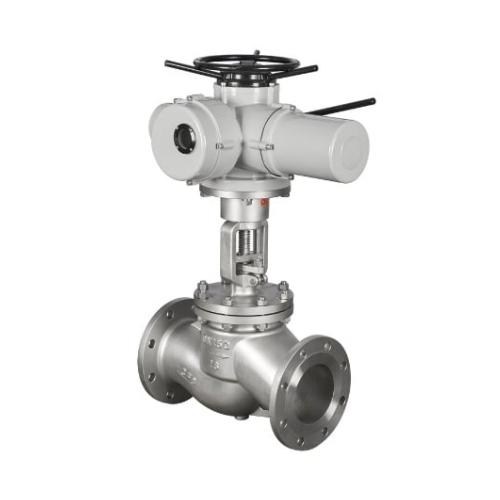

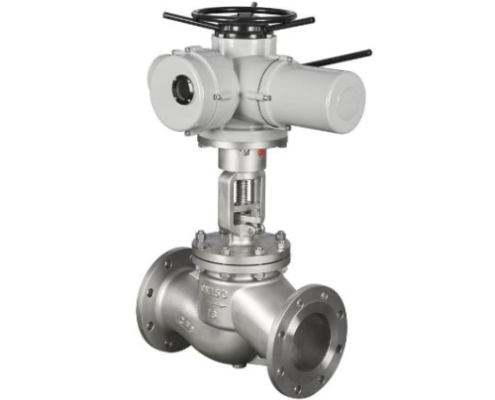

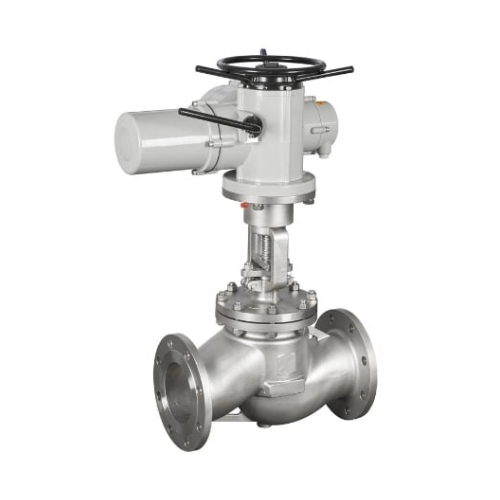

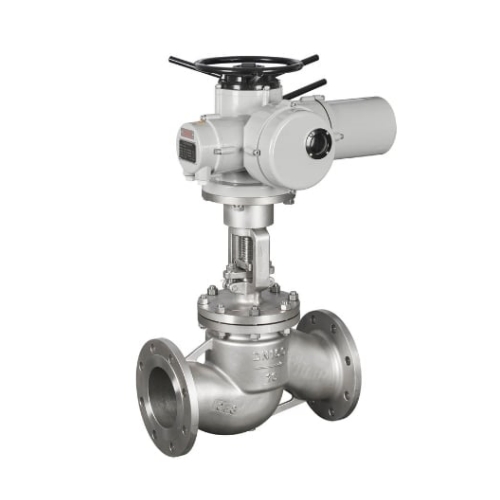

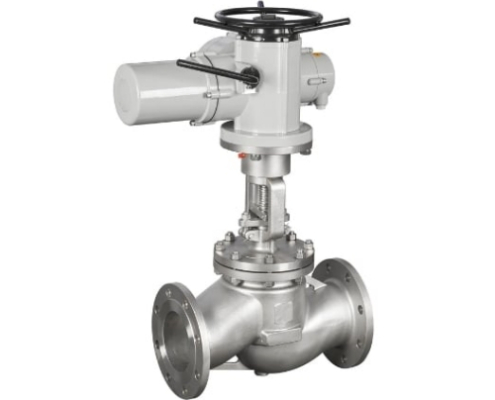

VINCER VE30-EGO Electric Actuated Globe Valves

The VINCER VE30-EGO Electric Actuated Globe Valve is a cutting-edge solution designed for accurate flow regulation and shut-off in a wide range of industrial applications. With electric actuation, precise throttling capability, and a durable design, the VE30-EGO is ideal for systems requiring automated and reliable control of liquids, gases, or steam.

Whether you’re managing HVAC systems, chemical processing, or power plants, the VE30-EGO provides consistent performance, long service life, and seamless integration with modern control systems.

Characteristics

Globe valve with electric actuator to help you improve the productivity.

Size range: DN15 to DN300
Working pressure range: 10/16/25/40/64bar
Working temperature range: -10 to 300℃
Valve materials: CF8, CF8M, WCB
Connection: Flanged (ANSI, JIS, DIN, GB)
Application: Water, steam and so on

Specifications

Parameter	Details
Valve Type	Electric Actuated Globe Valve
Body Material	Stainless Steel, Carbon Steel, Alloy Steel, Cast Iron
Size Range	DN15 – DN400 (1/2″ – 16″)
Pressure Rating	PN10, PN16, PN25, PN40 (Class 150, 300, 600)
Temperature Range	-196°C to +550°C (-321°F to +1022°F)
Connection Type	Flanged, Threaded, Butt Weld, Socket Weld
End Connections	ANSI, DIN, JIS, GB Standards
Actuator Type	Electric (On/Off, Modulating)
Voltage Options	24V AC/DC, 110V AC, 220V AC, 380V AC
Control Signal	4-20mA, 0-10V, Pulse Width Modulation (PWM)
Leakage Class	Class IV, V, VI
Flow Characteristics	Equal Percentage, Linear, Quick Open
Certifications	ISO 9001, CE, API
