VINCER VE10-B-F

Electric Flanged Ball Valve

Description

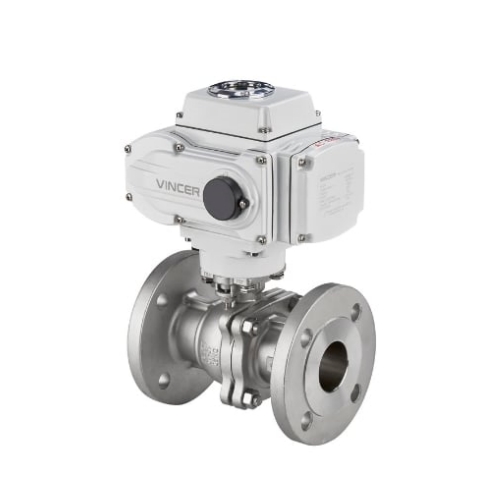

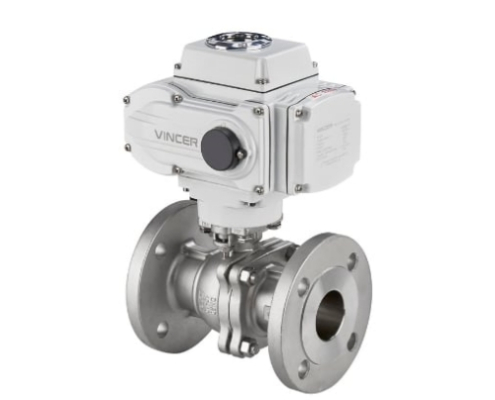

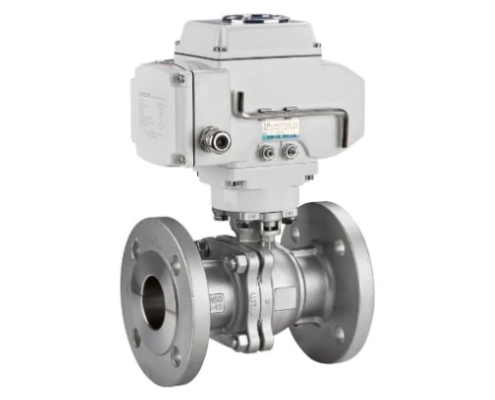

VINCER VE10‑B‑F Electric Flanged Ball Valve

Superior Automation & Reliability

Discover the VINCER VE10‑B‑F Electric Flanged Ball Valve, engineered to elevate fluid control systems with precision, durability, and advanced automation. Perfect for industries like water treatment, oil & gas, and chemical processing, this valve integrates robust engineering with smart electric actuation to deliver excellence.

Characteristics

Flanged ball valves with electric actuators are widely used for wastewater treatment, oil and gas and various industries.

Size range: 1/2″ to 10″ (DN15 to DN250)
Valve Material: Stainless steel or carbon steel
Ball Material: Stainless steel or WCB
Sealing Material: PTFE
Stem Materials: CF8
Temperature Range: -10°C to 180°C
Operating Pressure Range: 10bar to 64bar

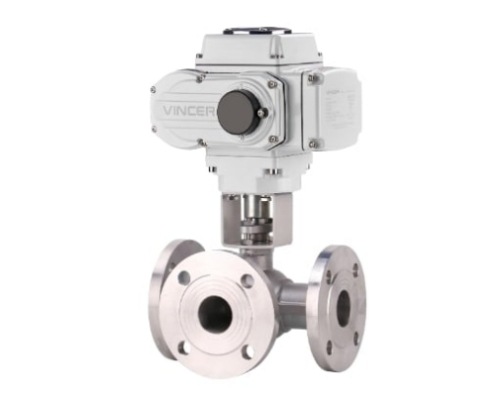

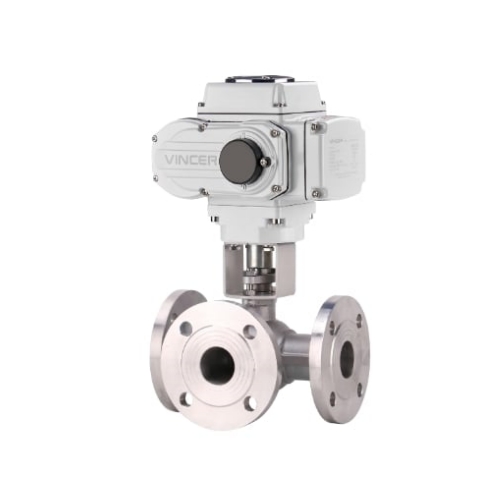

Valve Flow: 2-way or 3-way

Specifications

Valve

Size Range	DN15 to DN100
Max.Pressure Range	64bar
Temperature Range	Up to 180℃
Valve Material Options	CF8 or CF8M
Disc Material Options	PTFE
Connection	Flanged
Connection Standards	GB, DIB, ANSI or JIS

Electric Quarter-Turn Actuators

Torque Range	50Nm to 4000Nm
ON/OFF Type	For opening or closing fully
Modulating Type	Adjust the open/close angle within 90 degrees rotations
Input/Output Signal	4-20mA, 0-10Vdc, 1-5Vdc
