SUPMEA SUP-MF

Thermal mass flowmeter

Description

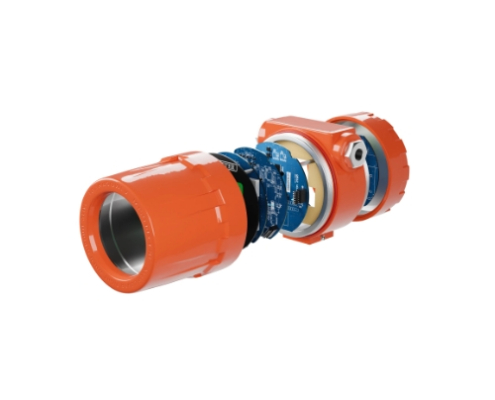

SUPMEA SUP-MF Thermal mass flowmeter

Looking for a reliable and precise gas flow measurement solution? The SUPMEA SUP-MF Thermal Mass Flowmeter is your top choice for measuring gas flow with exceptional accuracy, stability, and efficiency. Designed with advanced thermal dispersion technology, this flowmeter is ideal for a wide range of industrial applications including compressed air, natural gas, nitrogen, oxygen, CO₂, and other non-corrosive gases.

Characteristics

Without temperature and pressure compensation
Wide range: 0.5Nm/s～100Nm/s
Vibration resistance and long service life
Easy installation and maintenance
Digital circuit, accurate measurement
With RS485 communication

Features

High Accuracy and Stability: Achieve accurate measurements with ±1.5% of reading and excellent repeatability.
Wide Measuring Range: Suitable for low to high flow rates, even under low pressure conditions.
No Moving Parts: Ensures long-term reliability with minimal maintenance required.
Digital Display: Easy-to-read LCD for real-time monitoring of flow, total flow, and temperature.
Multiple Output Options: Includes 4-20mA, pulse, and RS485 Modbus for seamless system integration.

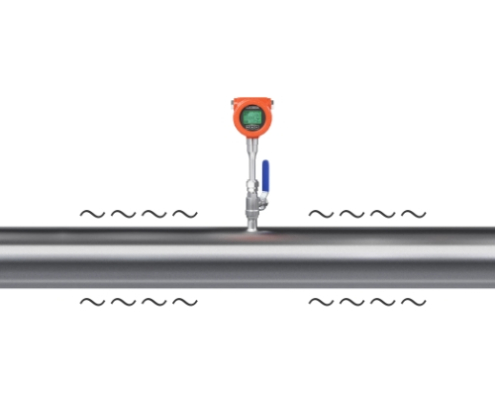

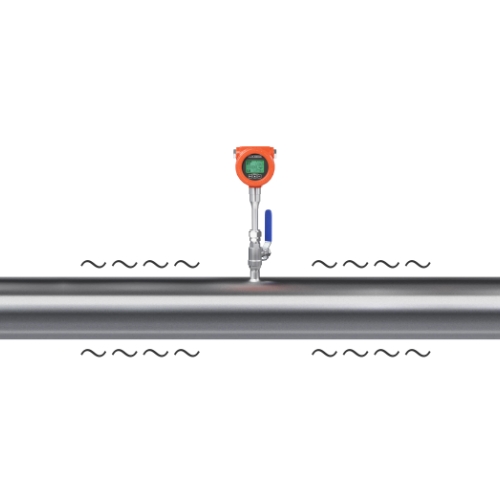

Easy Installation: Available in both insertion and inline types for various pipeline sizes.

Specifications

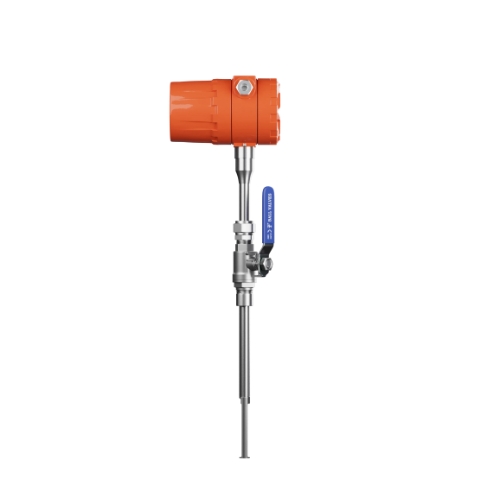

Type	Insertion
Medium	Steady-state gases (except unstable media as acetylene and boron trichloride etc.)
Diameter	DN65~DN1000
Flow rate	0.1~100Nm/s
Accuracy	±2.5%
Working Temperature	Sensor: -40~+300℃ Converter: -20~45℃
Working pressure	≤2.5 MPa
Power supply	220VAC ; 24VDC, 18W
Signal output	4~20mA, RS485 communication (Modbus RTU)
Ingress protection	IP65
Body Materials	Stainless steel
Relay	1~2 relay optional
