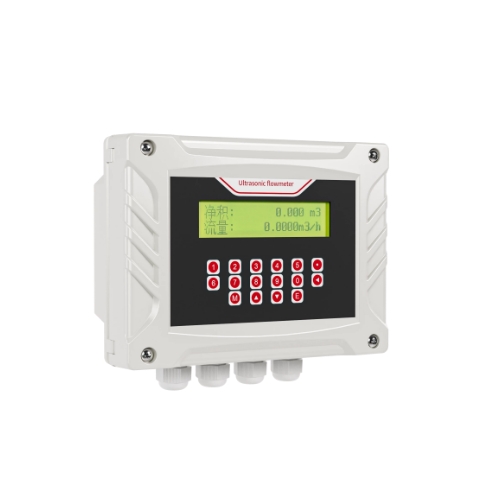

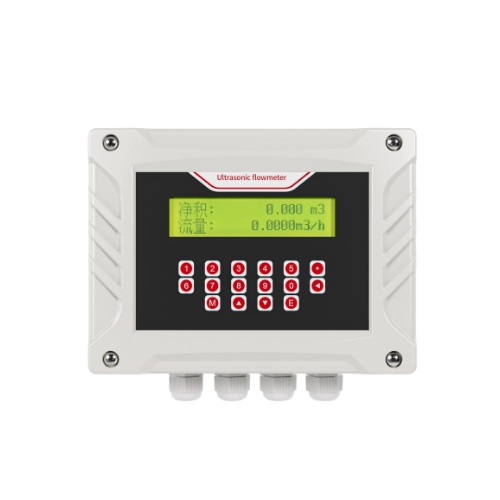

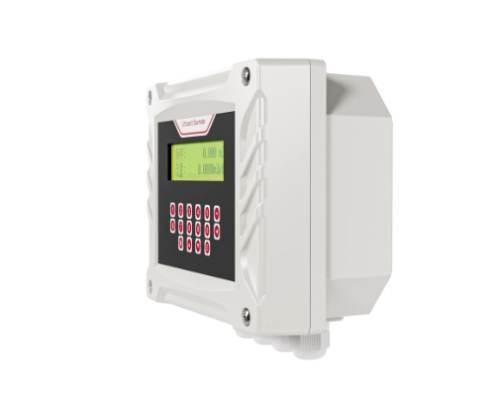

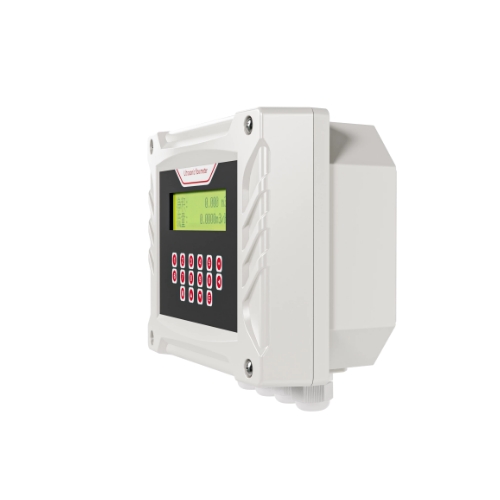

SUPMEA SUP-FSC400 Wall-Mounted Ultrasonic Flow Meter

Wall mounted & clamp on ultrasonic flowmeter

Description

SUPMEA SUP‑FSC400 Wall‑Mounted Ultrasonic Flow Meter

The SUPMEA SUP‑FSC400 Wall‑Mounted Ultrasonic Flow Meter is a high-performance, non-intrusive solution tailored for precise measurement of homogeneous liquids in industrial environments.

Engineered for reliability and flexibility, it stands out as the ideal choice for industries such as petroleum, chemical, power generation, and food processing.

The SUP-FSC400 Ultrasonic Flow Meter is designed for continuous measurement of most homogeneous liquids in industrial environments. It supports heat measurement through integrated temperature sensors and offers both clamp-on and insertion types for versatile installation options. These meters are ideal for industries such as petroleum, chemical, power generation, and food processing.

Characteristics

Broad Industrial Applications Suitable for Most Homogeneous Liquids

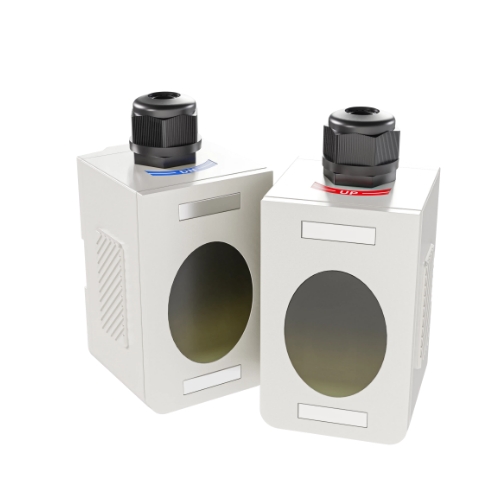

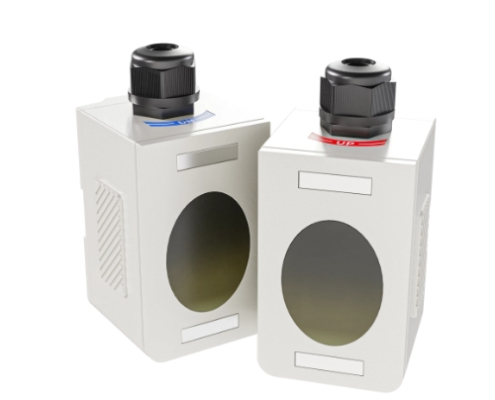

Clamp-On and Insertion Sensor Options Enable Easy, Non-Intrusive Installation Without Flow Interruption
Unaffected by Pipe Wall or Lining Materials Ensures High Measurement Accuracy
Wide Operating Temperature Range from -30°C to 90°C Depending on Model Selection
High Accuracy Rating of 1.0 Grade for Reliable Performance
Versatile Output and Power Supply Options Including Pulse, 4-20mA, RS485, and SPST with Dual 24VDC/220VAC Power Supply Compatibility

Key Features

Broad industrial applications, suitable for clean liquids without high concentrations of particles or bubbles.
Clamp-on and insertion options, ensuring easy, non-intrusive installation without flow interruption.
Measurement accuracy unaffected by pipe wall or lining materials.
Optional heat measurement, integrating temperature sensors for energy calculations.
Dual power supply (24VDC/220VAC), Pulse + 4-20mA + RS485 output for seamless integration with existing systems.

Applications include

Petroleum industry
Chemical manufacturing
Power generation facilities
Food processing plants

*Available in various sizes and configurations to suit different pipeline diameters and environmental conditions. Choose from standard or extended insertion types for DN80–DN6000 pipelines, or medium-sized clamp-on models for DN50–DN700 pipelines.

Specifications

Specification	Detail
Model Type	Medium-sized clamp-on (DN50–DN700) \| Standard insertion (DN80–DN6000) \| Extended insertion (DN80–DN6000)
Temperature Range	-30°C to 90°C
Accuracy	1.0 grade
Output & Power Supply	Pulse + 4-20mA + RS485 + SPST, 24VDC/220VAC dual power supply
Electrical Interface & Housing Material	M20*1.5 cable gland, plastic ABS, IP65/IP68
Cable Length Options	Standard: 5m, 10m, 20m \| Custom: Up to 100m
