SUPMEA SUP-FLM200

Micro Turbine Flow Meter

Description

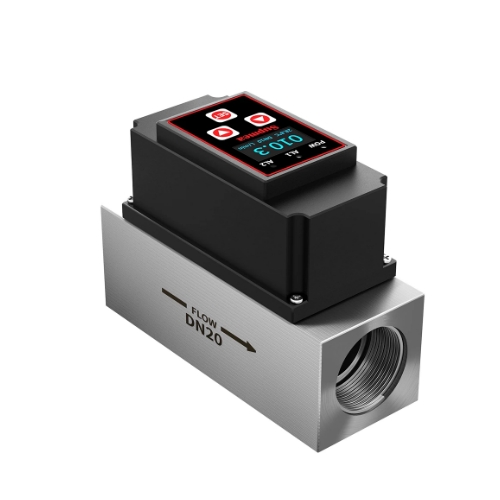

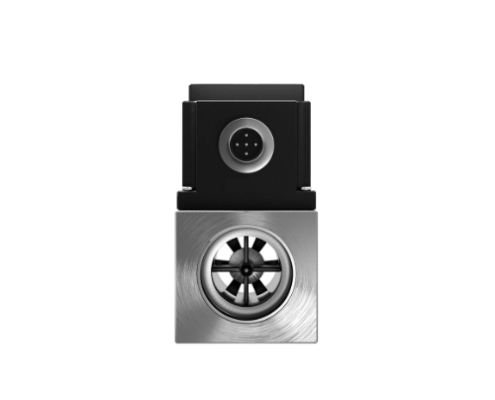

SUPMEA SUP‑FLM200 Micro Turbine Flow Meter

The SUPMEA SUP‑FLM200 Micro Turbine Flow Meter delivers exceptional performance in a compact form, offering simultaneous flow and temperature monitoring directly in your pipeline.
Featuring a simple yet robust design, it ensures hassle-free installation and maintenance—perfect for real-time process control across multiple industries.

Micro turbine flowmeter simple structure, high accuracy, easy to install and maintain, can be used for real-time monitoring of the liquid flow and temperature in the pipeline, support flow and temperature (4 ~ 20) mA signal or 485 communication, alarm switch output, and the use of OLED real-time display of the fluid flow and temperature, to achieve the pipeline in the flow of the temperature of the one-monitoring function. This product is widely used in petrochemical, electric power, gold, steel mills, paper, food processing, water treatment, battery factory and other industries.

Features

All-in-one temperature and flow sensor for integrated monitoring of flow temperature in pipelines.
Digital communication, analogue integrated.
Support flow and temperature intelligent display alarm contact output.

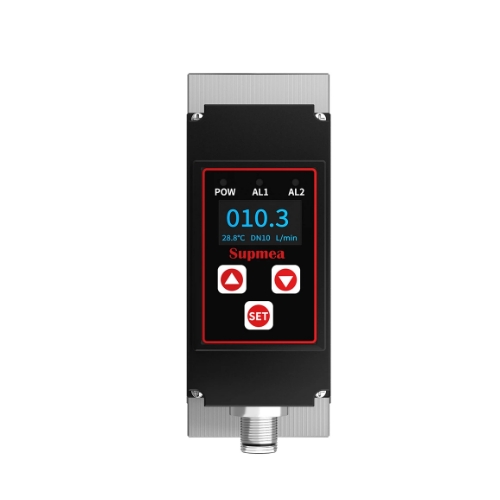

Self-illuminated OLED, clear and sharp display.
Flow meter electronic compartment and base separation design, parts replacement is convenient, easy to maintain.
Unscrewing the four screws of the panel, the flow meter can 180° turn the display direction, easy to adjust the direction of the outgoing line.
304 base and aluminium alloy case, scale and corrosion resistance.
Shell protection grade IP65, can be used in harsh environments.

Characteristics

Nominal diameter ：DN10，DN15，DN20，DN25
Accuracy ：± 1.5%，± 1℃
Direct measurement variable：flow rate，temperature
Communication output：RS485,MODBUS-RTU
Level of protection：IP65

Specifications

Product	Micro turbine flow meter
Model	SUP-FLM200
Measured variable	Flow rate,temperature
Nominal diameter & flow range	DN10：3~20 L/min
	DN15：10~100 L/min
	DN20：12~120L/min
	DN25：16~160 L/min
Communication output	RS485,MODBUS-RTU
Temperature range	0…100℃
Power supply	24 VDC
Accuracy	Flow：± 1.5%；Temperature：± 1℃
Medium type	Liquid(water or water-soluble liquids such as glycol, lubricants, etc.)
Process pressure	6.3MPa
Protection level	IP65
