SUPMEA SUP-Y290

Digital pressure gauge

Description

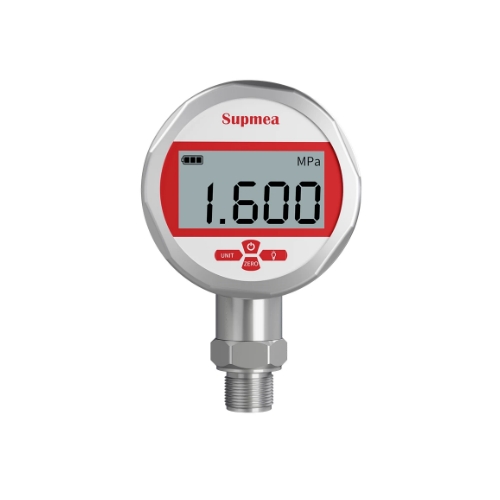

SUPMEA SUP‑Y290 Digital Pressure Gauge

High‑Accuracy, Battery‑Powered Solution for Industrial Pressure Monitoring.
Accurate pressure measurement is a key element for safety, efficiency, and control in many industrial processes. The SUPMEA SUP‑Y290 Digital Pressure Gauge delivers real‑time data with high precision, ruggedness, and flexibility. Whether for process control, field monitoring, or diagnostics, this gauge offers excellent features that make it a strong competitor in its class.

The core component of a digital pressure gauge is the pressure sensor, which operates based on how changes in pressure affect the sensor’s resistance or voltage. Under pressure, the internal sensor detects the force, which is then converted by a transducer into a corresponding electrical signal. This signal is processed by digital circuitry and displayed on the screen.

Introduction

High-precision digital pressure gauge with built-in high-accuracy pressure sensor, capable of accurately displaying real-time pressure readings. Features high precision and excellent long-term stability. Equipped with segmented LCD display, offering functions such as zero reset, backlight, power on/off, unit conversion, and filter constant adjustment.

Digital pressure gauges are widely used in hydropower, water supply, petroleum, chemical, mechanical, and hydraulic industries for on-site measurement, display, and control of pressure in non-corrosive media such as gases, water, and oil.

Characteristics

Range: -0.1~ 0 ~ 60MPa
Accuracy: 0.5%/0.25%
Power supply: 3V Battery powered

Specifications

Product	Pressure gauge
Model	SUP-Y290
Measure range	-0.1···0···60MPa
Accuracy	0.25%/0.5%
Overload capacity	(0.035–10) MPa: 150% FS (10–60) MPa: 125% FS
Long-term stability	0.2% FS/year
Sampling frequency	1 time per second
Compensation temperature	(-10–70)°C
Power Supply	3V (2 AA batteries)
Measured medium	Air, water, oil, and other media that do not corrode stainless steel and fluorocarbon rubber
Medium temperature	(-20–85)°C
Operating temperature	(-10–70)°C
Storage environment	(-20–80)°C
