SUPMEA Single Seat Regulating Valve

Description

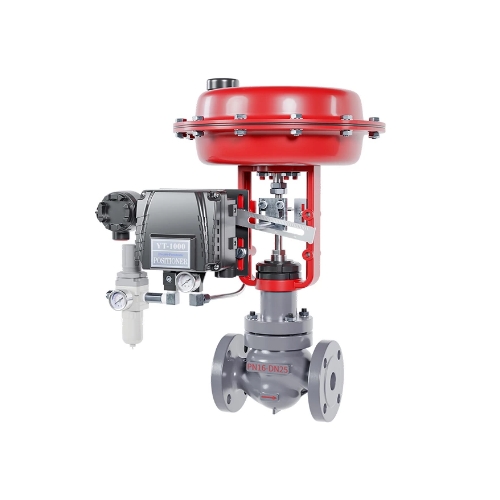

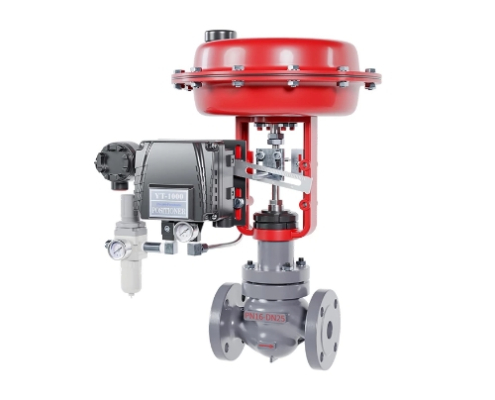

SUPMEA Single Seat Regulating Valve

Precision Flow & Pressure Control for Demanding Industrial Applications.
In industries where flow or pressure regulation is essential—such as chemical, water treatment, HVAC, energy, and steam systems—the right control valve can make all the difference. The SUPMEA Single Seat Regulating Valve offers reliable, precise modulation of fluid flow, integrating smoothly into automated systems and delivering consistent performance under varying conditions.

Characteristics

Advantages

High Accuracy & Wide Turn-Down
With a turn-down ratio of ~30:1 and quick-opening characteristic, it can finely control flow even when demand shifts significantly.
Robust Construction & Easier Maintenance
The single seat design means fewer sealing surfaces, reduced internal complexity, which often yields fewer leak points, simpler maintenance, and longer service life.
Versatile Temperature & Size Range
Supports a large range of sizes (DN15 up to DN600) and works across moderate temperature ranges (-20°C to 120°C), suitable for many common industrial fluids.
Smooth Integration in Automated Systems
Works well with pneumatic or electric actuators, control signals, feedback loops, and process control systems, allowing remote regulation and monitoring.
Cost-Effective for Many Applications
Because of simpler internals compared to multi-seat or severe throttling valves, these valves usually have lower upfront cost and maintenance cost, especially when you need linear/modulating flow control.

Technical Specifications

Parameter	Value
Diameter Range (DN)	DN 15 to DN 600
Pressure Rating	Up to 1.0 MPa
Connection Type	Flanged end connections
Temperature Range	−20°C to 120°C as standard
Flow Characteristic	Quick‑opening type
Inherent Turn‑Down Ratio	About 30:1 (means it can regulate small vs. large flows with good control)
Applicable Media	Water, steam, possibly other fluids depending on seal materials and body materials (check chemical compatibility)
