GESTRA M10Vi ISO GBV Ball Valve DN ¼″–2½″ | Industrial Ball Valve

Description

GESTRA M10Vi ISO GBV Ball Valve DN ¼″–2½″ | Industrial Ball Valve

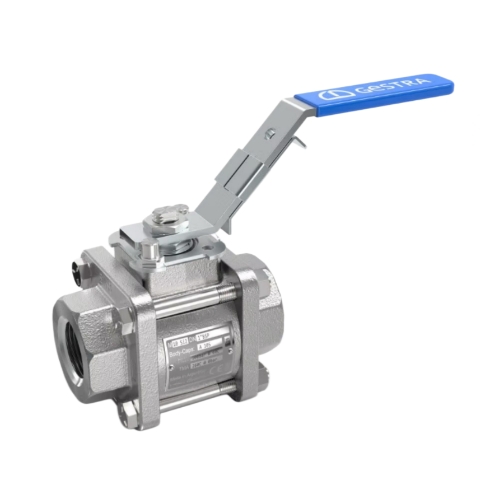

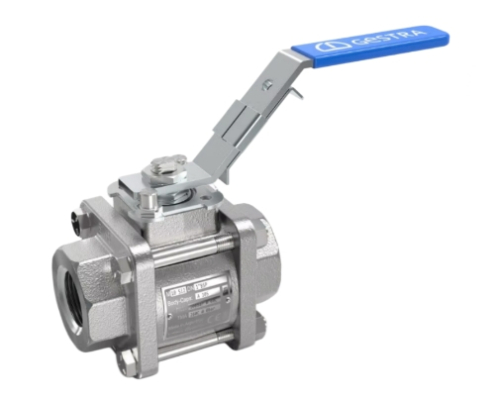

The M10Vi ISO three-piece body ball valve has been designed for use as an isolating valve, not a control valve, has a lockable handle as standard and can be serviced without removal from the pipeline (screwed and welded versions only). It can be used with process fluids for services ranging from vacuum to the higher temperatures and pressures.

ISO mounting

The integral ISO body mounting allows the valve to be automated without losing seal integrity, as the body does not require disassembly. Manual to remote control may therefore be easily accomplished by the ISO range of GESTRA ball valves.

Available types

M10Vi2_ _ ISO	Zinc plated carbon steel body, PTFE seats.
M10Vi3_ _ ISO	Stainless steel body, PTFE seats.

Note: The nomenclature will be followed with either FB (full bore) or RB (reduced bore).

Sizes and pipe connections

Full bore

Screwed and welded

¼”, 3/8″, ½”, ¾”, 1″, 1¼”, 1½” and 2″ BSP, BSPT, API/NPT, BW, SW

Flanged

DN15 to DN50

ASME Class 150, ASME Class 300,and EN 1092 PN40.

Reduced bore

Screwed and welded

¼”, 3/8″, ½”, ¾”, 1″, 1¼”, 1½”, 2″ and 2½” BSP, BSPT, API/NPT, BW, SW

Flanged

DN15 to DN65

ASME Class 150, ASME Class 300, and EN 1092 PN40.

Technical data

Flow characteristic	Modified linear
Port	Full and reduced bore versions
Leakage test procedure to ISO 5208 (Rate A)/EN 12266-1 (Rate A)
Antistatic device	Complies with ISO 7121 and BS 5351

GESTRA M10Vi ISO GBV Ball Valve DN ¼″–2½″ | Industrial Ball Valve

GESTRA: The Ultimate Solution for Industrial Steam & Fluid Control Systems

GESTRA M10Vi ISO GBV Ball Valve DN ¼" to DN 2½"

High-Precision Industrial Ball Valve for Reliable Flow Control

The GESTRA M10Vi ISO GBV Ball Valve is a compact, high-quality industrial ball valve designed for precise flow isolation and control in demanding industrial systems. Manufactured according to ISO standards, this valve delivers excellent sealing performance, durability, and operational safety across a wide range of applications.

With a size range from DN ¼” to DN 2½”, the GESTRA M10Vi GBV Ball Valve is ideal for steam, condensate, water, gas, and process media, making it a trusted solution for industrial plants worldwide.

Why Choose GESTRA M10Vi ISO GBV Ball Valve?

Precision Ball Valve for Industrial Applications

The GESTRA M10Vi Ball Valve is engineered for:

Accurate shut-off control
Smooth operation
Reliable performance in continuous duty systems

This makes it suitable for both manual and automated valve systems.

Compact Design – DN ¼” to DN 2½”

Available in sizes:

The compact size range allows easy installation in limited-space piping systems without compromising performance.

ISO-Certified Quality for Long-Term Reliability

Manufactured under strict ISO quality standards, the GESTRA M10Vi ISO GBV Ball Valve offers:

Consistent manufacturing quality
High resistance to wear and corrosion
Long service life with minimal maintenance

This ensures stable performance in industrial environments.

Excellent Sealing Performance

The precision-engineered ball and seat design provides:

Tight shut-off
Minimal leakage
High operational safety

Ideal for steam and condensate systems, where reliability is critical.

Technical Specifications – GESTRA M10Vi ISO GBV Ball Valve

Specification	Description
Product Type	Ball Valve
Brand	GESTRA
Model	M10Vi
Series	GBV
Size Range	DN ¼” – DN 2½”
Standard	ISO
Operation	Manual (automation optional)
Media	Steam, Condensate, Water, Gas, Process Fluids
Applications	Industrial & Process Systems

Applications of GESTRA M10Vi ISO GBV Ball Valve

The GESTRA M10Vi Ball Valve is widely used in:

Its compact size and reliable shut-off make it ideal for precision flow isolation.

Key Benefits for Industrial Buyers

Compact design for flexible installation
ISO-certified manufacturing quality
Long service life and low maintenance
Trusted GESTRA engineering
Suitable for multiple industrial media

Choosing the GESTRA M10Vi ISO GBV Ball Valve means investing in efficiency, safety, and reliability.

Buy GESTRA M10Vi ISO GBV Ball Valve DN ¼" to DN 2½" Today

Looking for a high-quality ISO-certified ball valve for your industrial system?
The GESTRA M10Vi ISO GBV Ball Valve offers precision control, compact design, and proven reliability.

📞 Contact us today for:
