AUTOMA Screw 1 Piece Ball Valve

Electric Valve

Description

AUTOMA Electric Valve Screw 1 Piece Ball Valve

When it comes to industrial automation and fluid handling, precision, reliability, and durability are non-negotiable. The AUTOMA Electric Valve Screw 3 Piece Ball Valve stands out as a top-tier choice for businesses that demand efficient flow control without compromise. Engineered for excellent performance and long-term stability, this electric ball valve is designed to deliver unmatched results in various applications—from manufacturing and processing industries to HVAC and water treatment systems.

Model Name

Application

Fluids: Water, Steam, Gas, Oil, Chemical Process
Construction: 1 Piece Body, Floating Ball, Anti Blow Out
End Connection: PT Screw
Design: ANSI B 1.20.1/16.10/16.34, API 598
Seat Leakage: Class V, VI

Specification

Valve Size	10A(3/8″) ~ 50A(2″)
Actuator Model	ATM0020 / ATM0040
Actuator Type	Electric
Electrical	AC110V, 220V, 380V
Output Torque	25Nm / 40Nm
Operating time	11/50Hz, 14/50Hz
Operating Type	On-Off
Rotating Angle	90˚ ±5˚
Fluid Temp	-20℃ ~ +70℃
Rating	1000 PSI
Material	Body(A351 CF8, 8M) / Ball(A182 F304, 316) / Seat(PTFE, RTFE, PEEK)

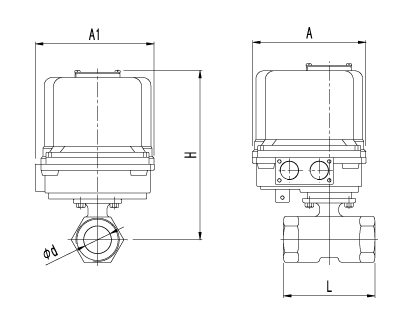

Dimension

AUTOMA Electric Valve Screw 1 Piece Ball Valve

Model	Size		Motor		H (APPROX)	L	Ød
Model	mm	Inch	A	A1	H (APPROX)	L	Ød
ATM0020-8S3	8A	1/4″	89.4	109.7	173.5	60	10
ATM0020-10S3	10A	3/8″	89.4	109.7	173.5	60	12.5
ATM0020-15S3	15A	1/2″	89.4	109.7	173.5	65	15
ATM0020-20S3	20A	3/4″	89.4	109.7	173.5	75	20
ATM0020-25S3	25A	1″	89.4	109.7	216	85	25
ATM0040-32S3	32A	1-1/4″	113.5	121.8	227	101	32
ATM0040-40S3	40A	1-1/2″	113.5	121.8	231	110	38
ATM0080-50S3	50A	2″	160	121	218	130	50
