AUTOMA Flange Ball Valve

Electric Valve

Description

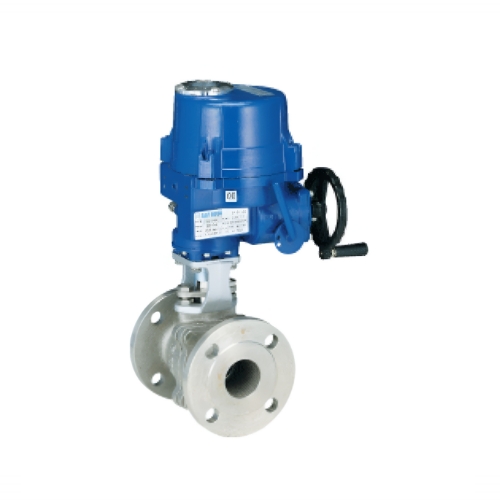

AUTOMA – Electric Valve Flange Ball Valve

The AUTOMA Electric Valve Flange Ball Valve is engineered for industries that demand exceptional precision, reliability, and automation performance. With its high-quality materials, intelligent electric actuator, and durable flange-end design, this AUTOMA valve delivers superior flow control for water treatment, oil and gas, HVAC systems, chemical processing, and industrial automation.

If you’re looking for a high-end electric ball valve that guarantees efficiency and long-term stability, AUTOMA is the trusted solution used by professionals worldwide.

Model Name

Application

Fluids: Water, Steam, Gas, Oil, Chemical Process
Construction: 2 Piece Body, Floating Ball, Anti Blow Out, Fire Safety
End Connection: RF, BW, SW
Design: API 6D/598/607, ANSI B16,10/16.25/16.34/16.5
Seat Leakage: Class IV, V, VI

Specification

Valve Size	15A(1/2″) ~ 350A(14″)
Actuator Model	ATM0040 ~ ATM3000
Actuator Type	Electric
Electrical	AC110V 220V, AC380V 440V
Rotating Angle	90˚ ±5˚
Operating Type	On / Off, Modulating (Except for ATM0040)
Fluid Temp	-20℃ ~ 70℃
Rating	ANSI 150# (300#, 600#)
Material	Body(WCB A216, A351 CF8, 8M) / Ball(A351 CF8, 8M, A182 F304, 316) / Seat(PTFE, PEEK, Metal)

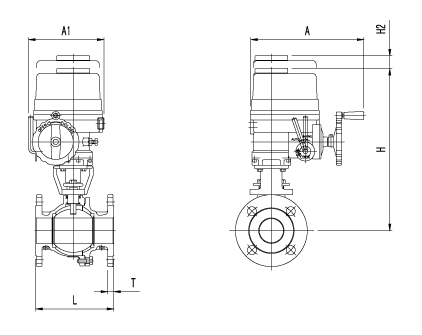

Dimension

AUTOMA Electric Valve Flange Ball Valve

Model	Size		Actuator		H (APPROX.)	H2	L±1.6
Model	mm	Inch	A	A1	H (APPROX.)	H2	L±1.6
ATM0040-15F	15A	1/2″	113.5	121.8	233	–	108
ATM0040-20F	20A	3/4″	113.5	121.8	236	–	117
ATM0040-25F	25A	1″	113.5	121.8	245	–	127
ATM0040-32F	32A	1-1/4″	113.5	121.8	248	–	140
ATM0080-40F	40A	1-1/2″	160	121	258	40	165
ATM0080-50F	50A	2″	160	121	256	40	178
ATM0160-65F	65A	2-1/2″	338	229	406	140	190
ATM0160-80F	80A	3″	338	229	482	140	203
ATM0350-100F	100A	4″	357	244	492	170	229
ATM0500-125F	125A	5″	357	244	547	170	356
ATM0800-150F	150A	6″	380	287	543	170	397
ATM1100-200F	200A	8″	380	287	645	170	457
ATM2000-250F	250A	10″	440	375	813	225	533
ATM2000-300F	300A	12″	440	375	875	225	610
ATM3000-350F	350A	14″	440	375	951	225	686
