AUTOMA Butterfly Valve

Electric Valve

Description

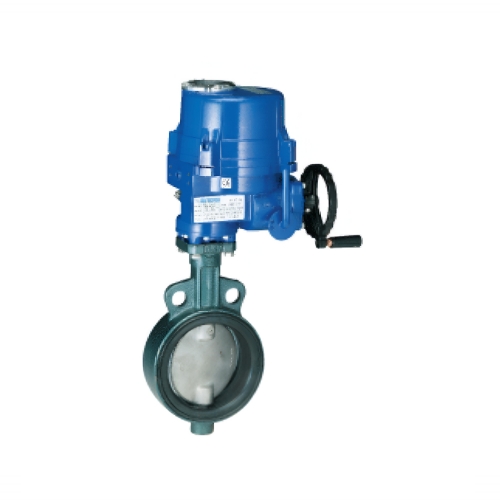

AUTOMA – Electric Valve Butterfly Valve

Looking for a high-performance electric butterfly valve that guarantees precision, durability, and seamless automation? The AUTOMA Electric Valve Butterfly Valve is the ultimate solution for industries that require accurate flow regulation with minimal maintenance. Built with advanced engineering and long-lasting materials, AUTOMA continues to be the top choice for factories, water treatment plants, HVAC systems, and industrial automation.

Model Name

Application

Fluids: Water, Gas, Oil, Chemical Process
Construction: Concetric, Anti Static Device
End Connection: FF, Wafer, Lug
Design: API 602/598, ANSI B 16,34/16.47/16.5
Seat Leakage: Class V, VI

Specification

Valve Size	40A ~ 1000A
Actuator Model	ATM0040 ~ ATM3000
Actuator Type	Electric
Electrical	AC110V 220V, AC380V 440V
Rotating Angle	90˚ ±5˚
Operating Type	ON/OFF, MODULATING (Except for ATM0040)
Fluid Temp	-20℃ ~ ±70℃
Rating	ANSI150#
Body Material	Body(A216 WCB, A351 CF8) / Disc(A351 CF8, CF8M) / Seat(EPDM, VITON)

Dimension

AUTOMA Electric Valve Butterfly Valve

Model	Size		Actuator		H (APPROX.)	H1	H2	L
Model	Size		A	A1	H (APPROX.)	H1	H2	L
ATM0040-40BF	40A	1-1/2″	113.5	121.8	263	58	–	41
ATM0040-50BF	50A	2″	113.5	121.8	270	65	–	43
ATM0080-65BF	65A	2-1/2″	160	121	268	71	40	46
ATM0080-80BF	80A	3″	160	121	278	83	40	46
ATM0080-100BF	100A	4″	160	121	291	100	40	52
ATM0100-125BF	125A	5″	258	172	433	110	125	56
ATM0160-150BF	150A	6″	338	229	489	130	140	56
ATM0240-200BF	200A	8″	338	229	552	163	140	60
ATM0350-250BF	250A	10″	357	244	608	227	170	68
ATM0500-300BF	300A	12″	357	244	660	252	170	78
ATM0800-350BF	350A	14″	380	287	669	272	170	78
ATM1100-400BF	400A	16″	380	287	713	343	170	102
ATM2000-450BF	450A	18″	440	375	836	366	225	114
ATM2000-500BF	500A	20″	440	375	900	421	225	127
ATM3000-600BF	600A	24″	440	375	985	493	225	154
